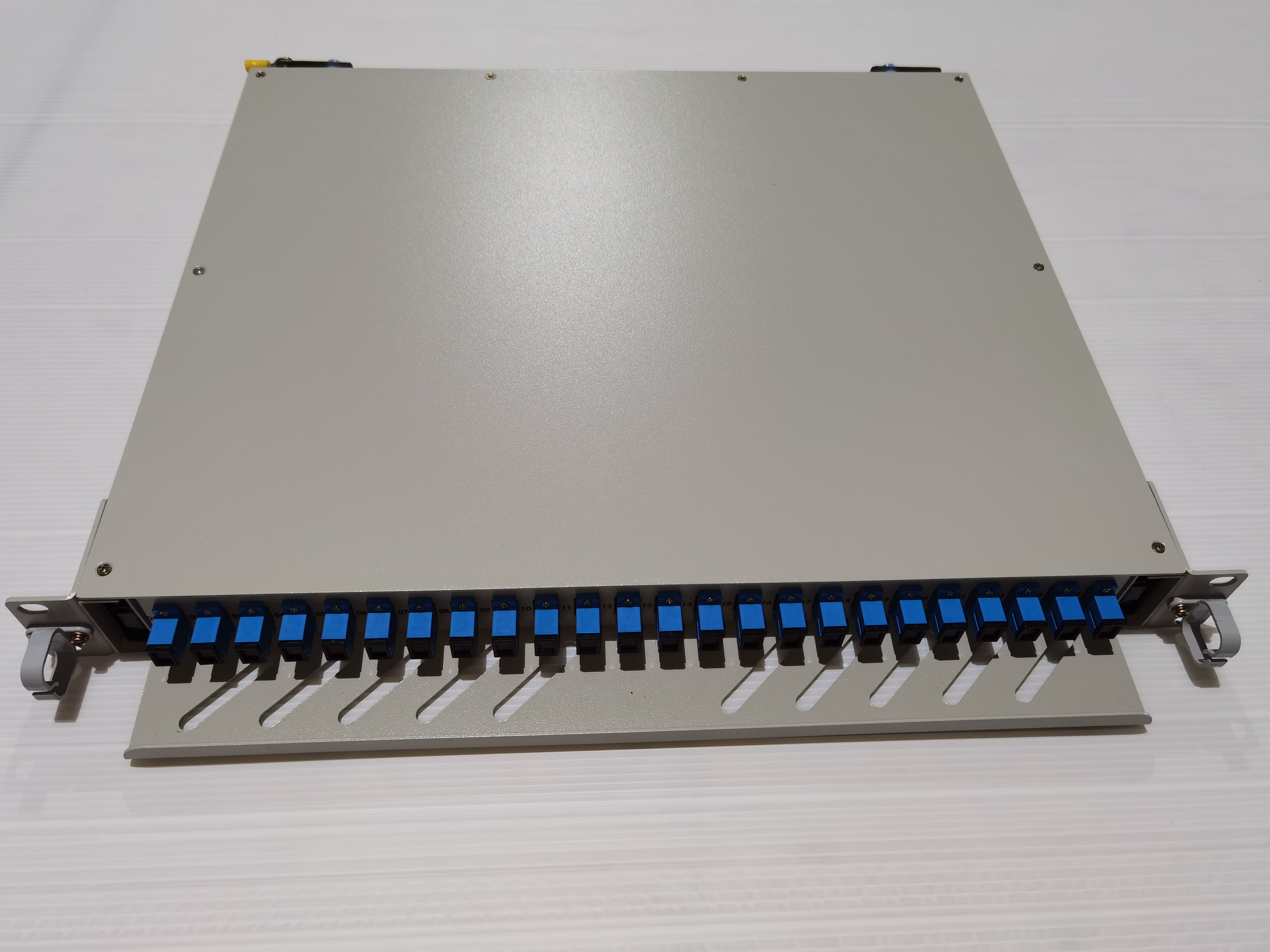

WM-ODF-24SC 19'' Rack Mount Optical Distribution Frame (ODF) Power Distribution Accessory

Feature

1. 19-inch standard unit construction size, free to fit into the distribution frame cabinet.

2. The adapter panel and ODF are made of metal material, the surface is sprayed, beautiful and durable; the splice tray and the cable guide are made of PP material, which is light, flexible and durable.

3. At the rear of the ODF unit, there is a cable inlet hole and an optical cable splitting and fixing device; the optical cable is introduced from the back side and opened and peeled and fixed, and spliced with the pigtail in the splice tray, and to be terminated by devices or end user if applied.

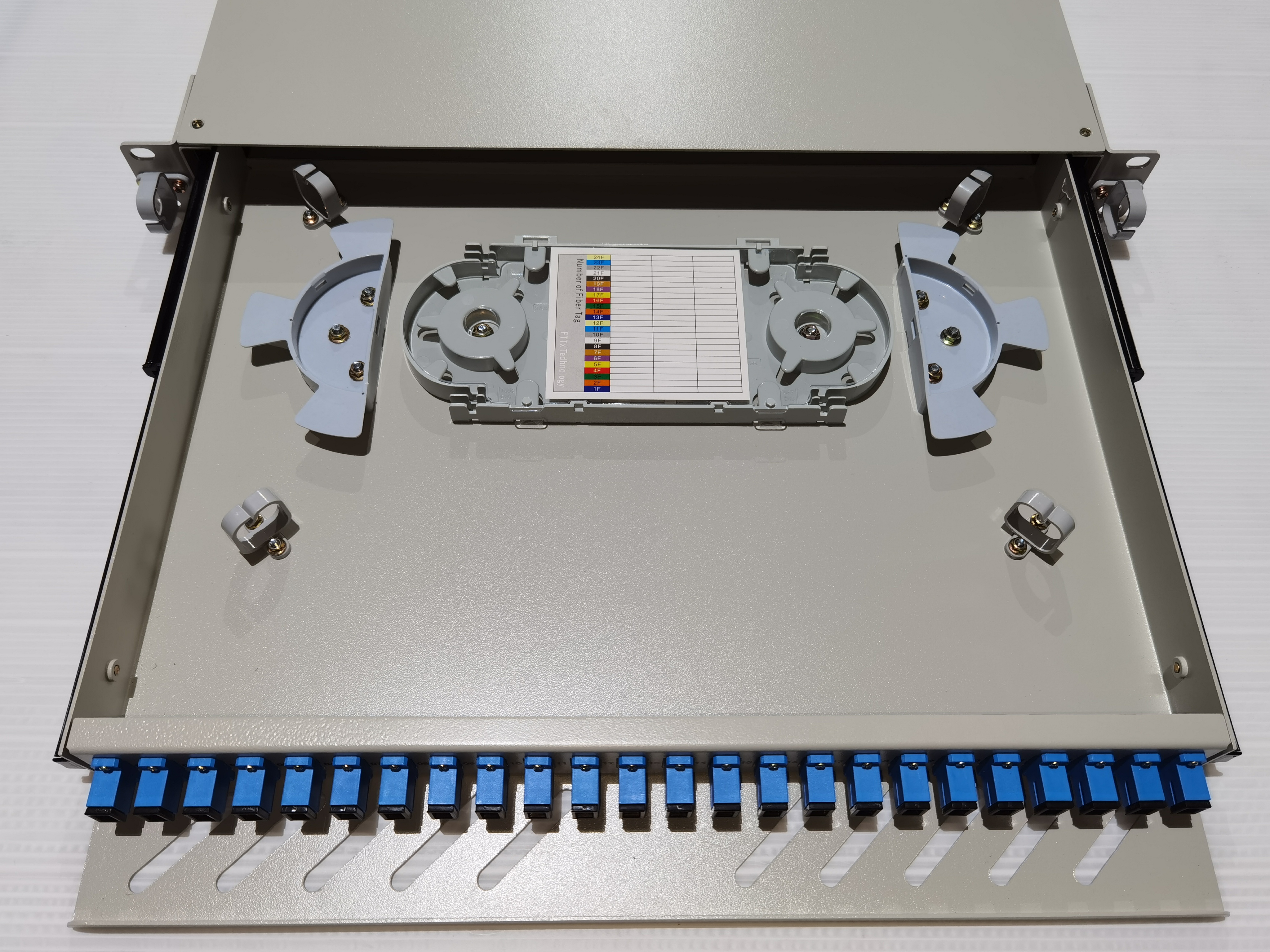

4. The ODF unit adopts a drawer structure, which can be extracted when splicing, and reset after the operation is completed. At the same time, the pull-type device has a limiting device to prevent excessive extraction and damage the optical fiber.

5. SC adapter is available.

6. Applicable to ribbon, bundle and single core cable.

Mechanical Parameter

Working Condition

Working Temperature：-25℃～+40℃

Environment Temperature：-40℃～+60℃

Storage Temperature：-25℃～+55℃

Relative Humidity：≤85%（+30℃）

Air Pressure：70Kpa～106Kpa。

Technical Parameter

1. Standard Working Wavelength：850nm、1310nm 、1550nm

2. Insertion Loss：≤0.3dB

3. Return Loss: PC≥40dB、UPC≥50dB、APC≥60dB

4. Electric Strength: ≥3KV (DC)/1min, no breakdown, no arcing.

5. Insulation Resistance: ≥1000 MΩ/500V(DC)

6. Insertion life: 500times.
