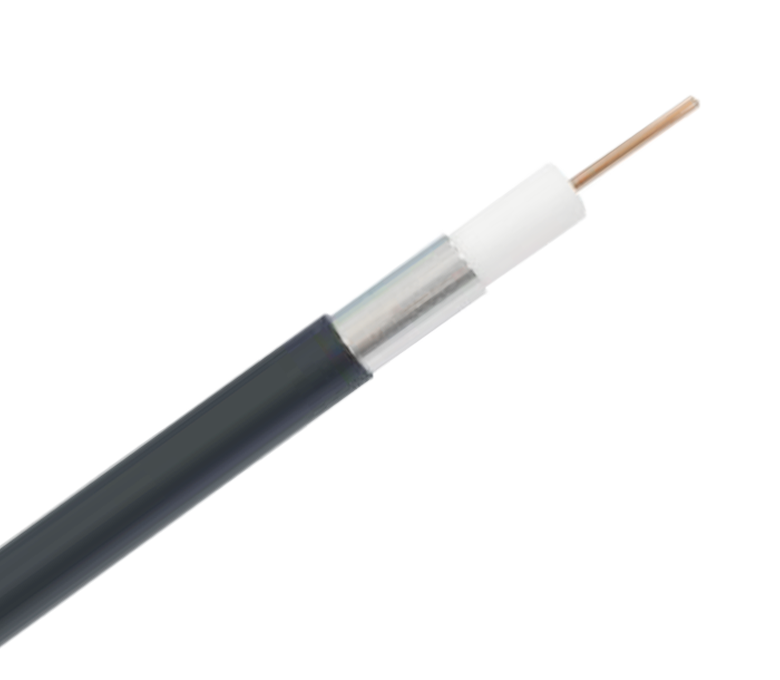

Trunk Series—75 Ohm Coaxial Cable 540 Welded Trunk Cable With Messenger, Jelly

Trunk cable series physically foaming insulation with AL-tube outer conductor is applied to CATV main line project. Tianyi AL-tube series made of CCA inner conductor and AL-tube outer conductor, both of the material have the same thermal expansion coefficient and modulus of elasticity. Which greatly decrease the failure caused by wire drawing and bending of inner conductor. Comparing with conventional cables, it has better shield attenuation, better return loss, less attenuation, etc.

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download
Material Diameter (mm)
Inner Conductor Copper Clad Aluminum 3.15±0.03
Dielectric Foamed PE 13.03±0.10
Outer Conductor Welded Aluminum Tube 13.72±0.10
Messenger Galvanized Steel 2.77±0.05
Jacket PE With Jelly 15.49±0.20
Packaging 1000m/Wooden reel D1080×d420×H520
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

lEAVE A MESSAGE

News

Product knowledge extension

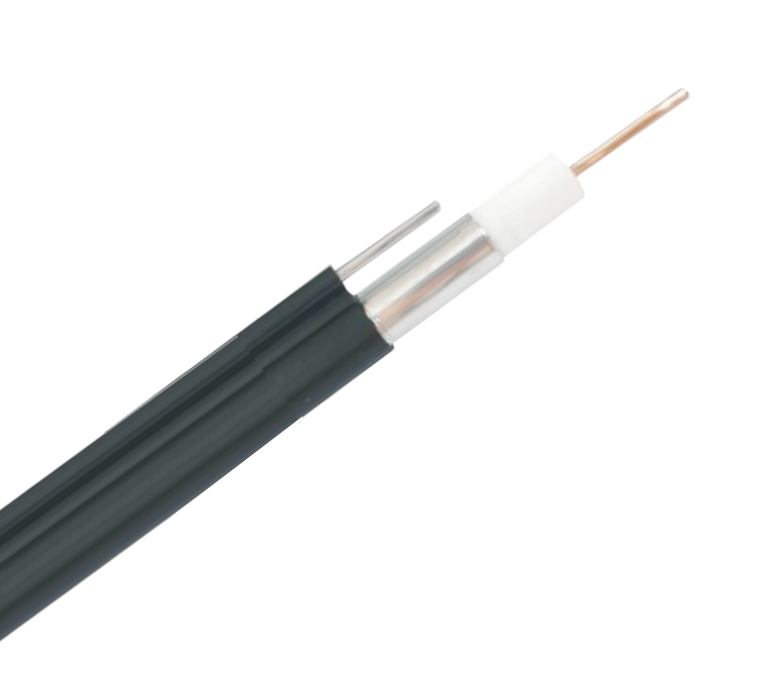

We offer the 540 Welded Trunk Cable in two variations: with messenger and without. The 540 Welded Trunk Cable with Messenger features a durable steel messenger wire that provides extra support and strength, making it ideal for aerial installations. It has been rigorously tested to ensure it can withstand harsh weather conditions, including wind and ice.
Our Jelly 540 Welded Trunk Cable comes equipped with a layer of jelly, which provides extra moisture resistance, ensuring your cable performs reliably even in humid or wet environments. This makes it an excellent choice for outdoor installations.
At our company, we pride ourselves on offering only the highest quality cables. Our 540 Welded Trunk Cable is made with premium materials and designed to last. It features an inner copper conductor, a dielectric insulator, a braided copper shield, and a durable outer jacket.
Whether you are building a new telecommunications network, upgrading your cable TV system, or simply need reliable cabling for your business, our 540 Welded Trunk Cable is the perfect choice. Contact us today to learn more about our products and to place your order.
