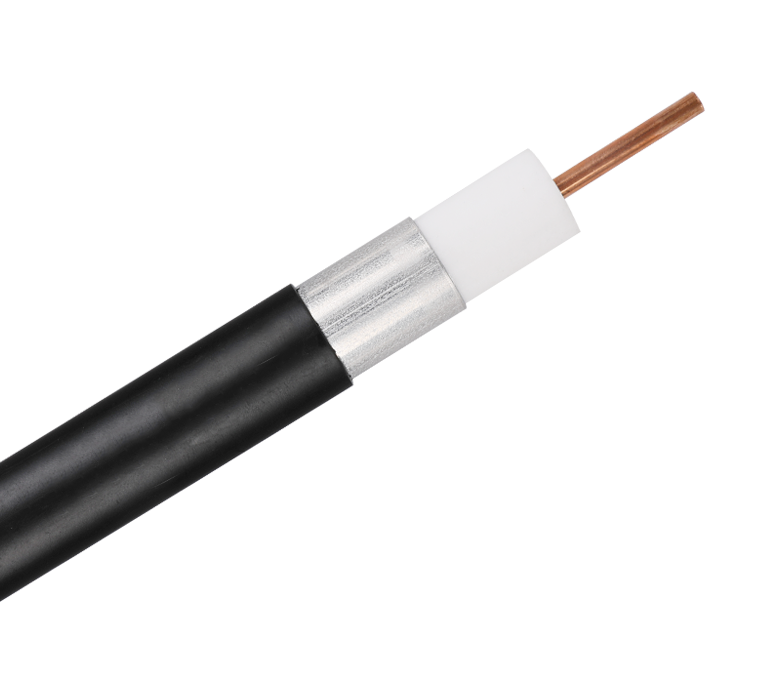

Trunk Series—75 Ohm Coaxial Cable 565 Seamless Trunk Cable with Jelly

Trunk cable series physically foaming insulation with AL-tube outer conductor is applied to CATV main line project. Tianyi AL-tube series made of CCA inner conductor and AL-tube outer conductor, both of the material have the same thermal expansion coefficient and modulus of elasticity. Which greatly decrease the failure caused by wire drawing and bending of inner conductor. Comparing with conventional cables, it has better shield attenuation, better return loss, less attenuation, etc.

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download
Material Diameter (mm)
Inner Conductor Copper Clad Aluminum 3.28±0.03
Dielectric Foamed PE 13.18±0.10
Outer Conductor Extruded Aluminum Tube 14.35±0.10
Jacket PE With Jelly 16.13±0.20
Packaging 1000m/Wooden reel D1080×d480×H520
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

lEAVE A MESSAGE

News

Product knowledge extension

If you're in need of a reliable and high-performance cable for your telecommunications or broadcast applications, the Seamless Trunk Cable with Jelly is an excellent choice. This cable is built to last, with a robust design that ensures optimal signal quality and reduces the risk of signal loss or interference.
One of the key features of this cable is its seamless design. Unlike other cables that have connectors that can degrade over time, the Seamless Trunk Cable with Jelly is manufactured as a continuous length, ensuring that your signal is delivered with minimal distortion. This makes it ideal for applications where reliability is critical, such as in telecommunications or broadcast.
Another key feature of this cable is its jelly coating. The jelly coating is a protective layer that helps to seal the cable and protect it from moisture, dirt, and other contaminants. This makes it an excellent choice for outdoor use or in areas where the cable may be exposed to harsh environments.
The Seamless Trunk Cable with Jelly is also highly durable, with high-quality materials that resist wear and tear. It is rated for 75 Ohm impedance, ensuring that your signal is delivered with optimal clarity and minimal distortion.
