WM-ODF-96SC 19'' Rack Mount Optical Distribution Frame (ODF) Power Distribution Accessory

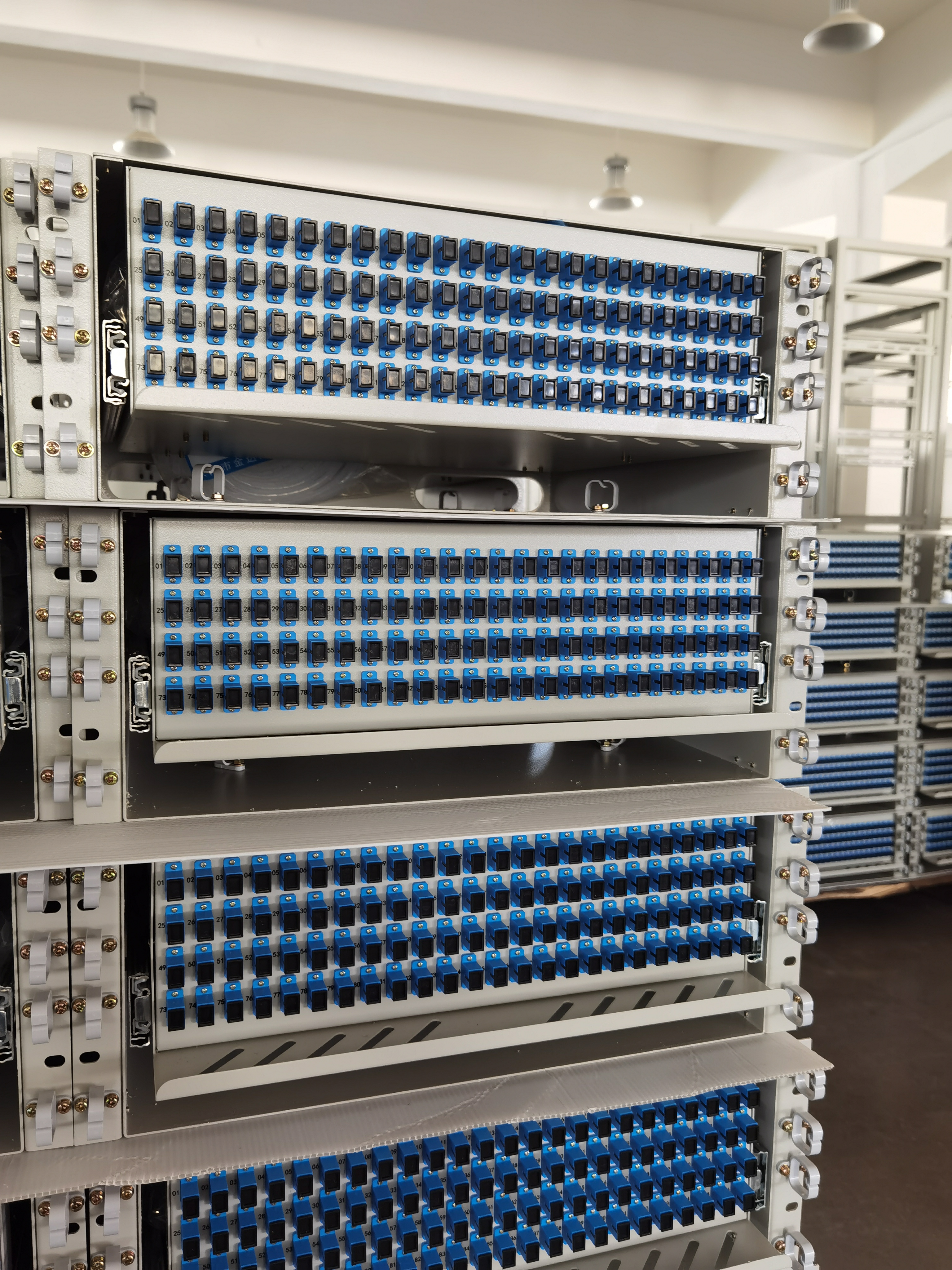

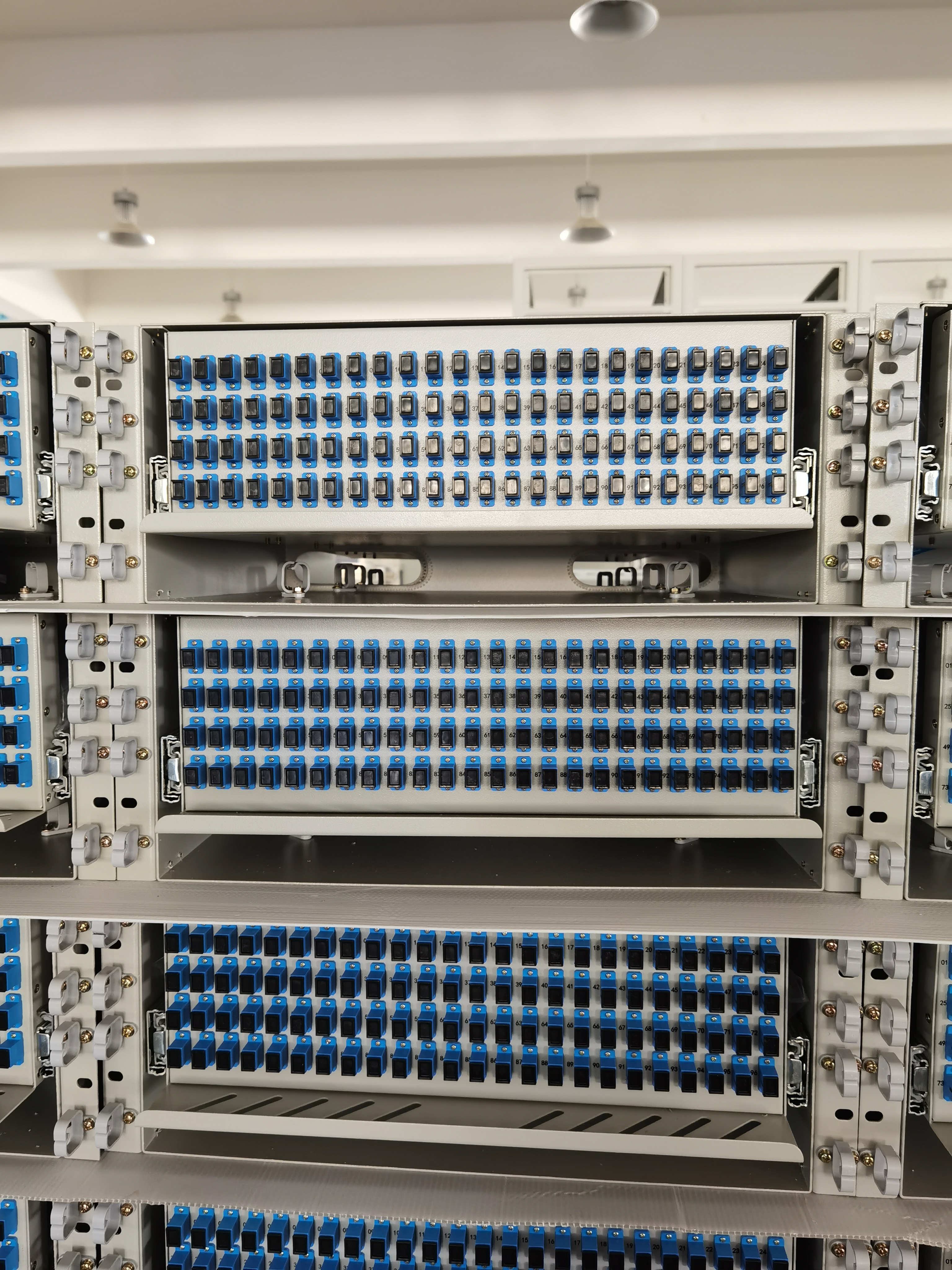

The WM-ODF-96SC standard ODF is a high-density, high-capacity fiber management unit that integrates the splicing and distribution of optical fibers. The ODF unit has a capacity of 96cores and a height of 4U. It can be installed in a 19-inch standard rack or cabinet freely according to user needs. The ODF unit has cable fixing function, fiber protection function, fiber splicing function, wire adjustment function, and fiber core and pigtail protection. The device is flexible in configuration, easy to install and use, easy to maintain, and easy to manage.

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Feature

1.19-inch standard unit construction size, free to fit into the distribution frame cabinet.

2. The adapter panel and ODF are made of metal material, the surface is sprayed, beautiful and durable; the splice tray and the cable guide are made of PP material, which is light, flexible and durable.

3. At the rear of the ODF unit, there is a cable inlet hole and an optical cable splitting and fixing device; the optical cable is introduced from the back side and opened and peeled and fixed, and spliced with the pigtail in the splice tray, and to be terminated by devices or end user if applied.

4. The ODF unit adopts a drawer structure, which can be extracted when splicing, and reset after the operation is completed. At the same time, the pull-type device has a limiting device to prevent excessive extraction and damage the optical fiber.

5. SC adapter is available.

6. Applicable to ribbon, bundle and single core cable.

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

lEAVE A MESSAGE

News

Product knowledge extension

The WM-ODF-96SC 19'' Rack Mount Optical Distribution Frame (ODF) Power Distribution Accessory is a versatile and reliable solution for managing and distributing fiber optic cables in a network infrastructure. This rack mount ODF provides easy and organized access to fiber optic cables and connectors, making it an ideal solution for use in data centers, telecommunications networks, and other applications that require high-speed data transmission.The WM-ODF-96SC ODF is designed to provide reliable and secure connections for up to 96 fiber optic cables, making it an ideal solution for high-density applications. It features a compact and rugged design that can be easily mounted in a standard 19-inch rack, and its modular construction allows for easy expansion and customization.
The ODF is equipped with 96 SC fiber optic adapters that allow for quick and easy connection of fiber optic cables. The SC adapters are compatible with standard single-mode and multimode fiber optic cables, and they provide excellent optical performance with low insertion loss and high return loss.In addition to providing fiber optic cable management, the WM-ODF-96SC ODF also features a power distribution accessory that allows for easy distribution of power to connected devices. The power distribution accessory includes a power strip with multiple outlets, allowing for easy power distribution to multiple devices.
