Prefabricated Branch Cables Main line Cable of Distributed Power Supply

1.Standard:This product is produced in accordance with the latest edition of JB/T 10636.

2.Scope of Application:This product is mainly used in the power distribution system of residential buildings, office buildings, hotels, hospitals, shopping malls and other middle and high-rise buildings. It is also suitable for the lighting systems of airports, ports, highways, bridges and tunnels as the main line cable of distributed power supply.

Message form contact us

PREV: Plastic Insulated Control Cable for the Fixed Laying NEXT: No next article

Details & specifications

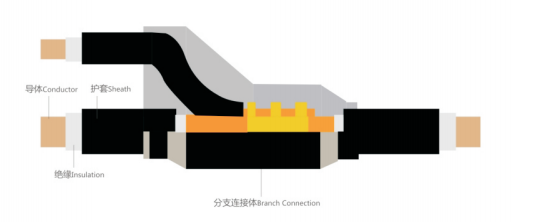

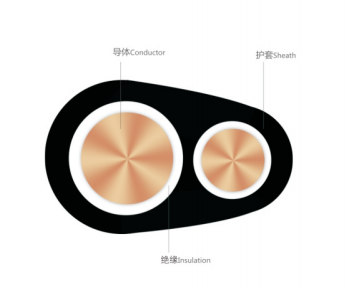

Construction
Technical Data Sheet
Documents to download

1.Product Performance

Prefabricated branch cables has the characteristics of integrity and convenient laying.

Operation temperature: PVC insulation is 70°℃;XLPE insulation is 90℃.

Overload temperature: The maximum overload temperature shall not exceed 130℃ while the cable is short-circuited.

Short-circuit temperature: The PCV insulated cable maximum temperature is 160 ℃, and the XLPE insulated cable maximum temperature is 250 ℃(The longest duration does not exceed 5 seconds).

Note (1)In the AC system, single-core non-armored cables are not allowed to be laid in magnetic pipes.

(2) The single-core armored (magnetic metal) cable is only suitable for DC system.In the AC system, the cable armor should be non-magnetic metal.

2.Cable Type Description

Type	Description
FZ-VV YFD-V	Copper Core PVC Insulated PVC Sheathed Prefabricated Branch Cable
FZ-YJV YFD-YJV	Copper Core XLPE Insulated PVC Sheathed Prefabricated Branch Cable
FZ-VV22 YFD-VV22	Copper Core PVC Insulated Steel Tape Armored PVC Sheathed Flame Retardant Prefabricated Branch Cable
FZ-YJV22 YFD-YJV22	Copper Core XLPE Insulated Steel Tape Armored PVC Sheathed Flame Retardant Prefabricated Branch Cable
