Power Cable for Inverter

1.Standard:This product is produced in accordance with Q/ZWD 015 Standard of      Power Cable for Inverter.



2.Scope of Application:Inverter cables are suitable for frequency power transmission, and mainly used for power of inverters and supporting components.

Details & specifications

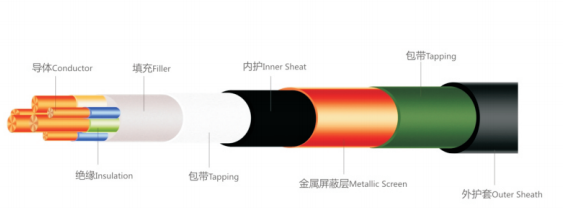

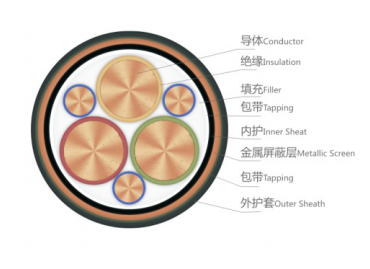

  • Construction
  • Technical Data Sheet
  • Documents to download

1.Product Performance

(1) AC rated voltage: 0.6/1kV.

(2) Maximum working temperature of conductor: PVC Insulation 70 . XLPE Insulation 90 .

Silicone Rubber Insulation180 .

Fluoropolymer Insulation200 .

(3) Minimum ambient temperature: PVC sheathed cable shall not be lower than 0 .

(4) The allowable bending radius: Single Core cable---- 20D

Multi-core cable---- 15D

Flexible cable---- 10D

Where D is the outer diameter of the cable.





2. Cable Type Description

Type

Description

BPVVP

PVC Insulated PVC Sheathed Copper Wire Braided Shielded Power Cable For Inverter

BPVVP22

PVC Insulated PVC Sheathed Copper Wire Braided Shielded Steel Tape Armored Power Cable For Inverter

BPVVP23

PVC insulated Polyolefin Sheathed Copper Wire Braided Shielded Steel Tape Armored Power Cable For Inverter

BPVVP1

PVC Insulated PVC Sheathed Copper Wire Winding Shielded Power Cable For Inverter

BPVVP1P2

PVC Insulated PVC Sheathed Copper Wire Wound Copper Tape Shielded Power Cable For Inverter

BPVVP2

PVC insulated PVC Sheathed Copper Tape Shielded Power Cable For Inverter

BPVVP2-22

PVC Insulated PVC Sheathed Copper Tape Shielded Steel Tape Armored Power Cable For Inverter

BPVVP2-23

PVC insulated Polyolefin Sheathed Copper Tape Shielded Steel Tape Armored Power Cable For Inverter

BPVVP3

PVC insulated PVC Sheathed Aluminum-plastic Composite Tape Shielded Power Cable For Inverter

BPYJVP

XLPE Insulated PVC Sheathed Copper Wire Braided Shielded Power Cable For Inverter

BPYJVP-22

XLPE Insulated PVC Sheathed Copper Wire Braided Shielded Steel Tape Armored Power Cable For Inverter

BPYJVP-23

XLPE Insulated PVC Sheathed Copper Wire Braided Shielded Steel  Tape Armored Power Cable For Inverter

BPYJVP1

XLPE Insulated PVC Sheathed Copper Wire Winding Shielded Power Cable For Inverter

BPYJVP1P2

XLPE Insulated PVC Sheathed Copper Wire Wound Copper Tape Shielded Power Cable For Inverter

BPYJVP2

XLPE Insulated PVC Sheathed copper Tape Shielded Power Cable For Inverter

BPYIVP2-22

XLPE Insulated PVC Sheathed Copper Tape Shielded Steel Tape Armored Power Cable For Inverter

BPYIVP2-23

XLPE Insulated Polyolefin Sheathed Copper Tape Shielded Steel Tape Armored Power Cable For Inverter

BPYJVP3

XLPE Insulated Ptfe Sheathed Aluminum-plastic Composite Tape Shielded Power Cable For Inverter
