RG59 Series 75 Ohm Standard Shied Coaxial Cable—Single Tape & Braid Wholesale

Home / Product / Coaxial Cable / 75 Ohm Braiding Coaxial Cable / RG59 Standard Shied Coaxial Cable / RG59 Series 75 Ohm Standard Shied Coaxial Cable—Single Tape & Braid

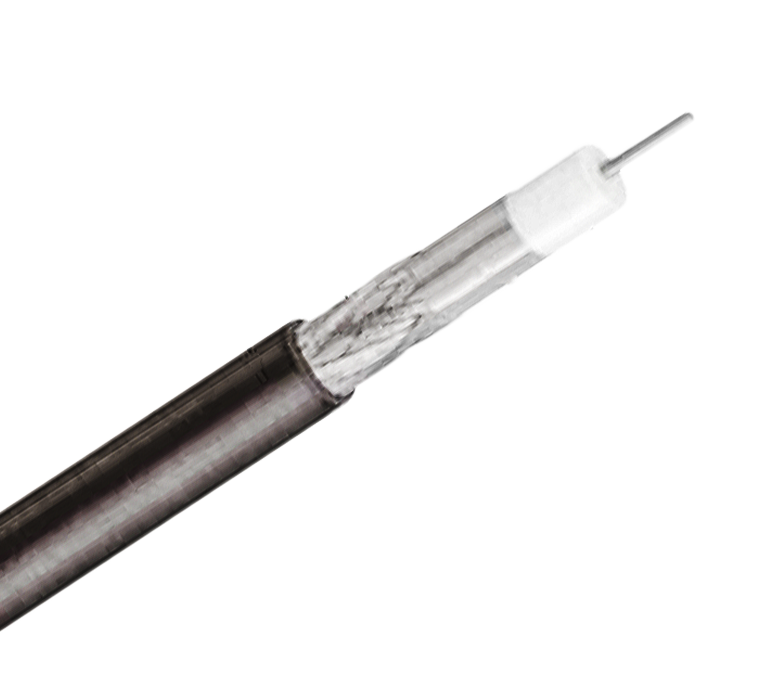

RG59 Series 75 Ohm Standard Shied Coaxial Cable—Single Tape & Braid

Coaxial Cable can be used for the transmission of both analog and digital signals. It is adopted to television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks. It has the advantages of good temperature performance, ultraviolet resistance, flame retarded, good shielding performance and long service life.
Message form contact us
PREV: No previous article NEXT: RG59+4×2×0.5CU Standard Shied 75 Ohm Braiding Cable

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

 CCS

0.81

Dielectric

Foamed PE

3.66

Al Foil

Bonded APA

3.86

Braiding

Al-Mg



Jacket

PVC

6.10

Packaging

305m/Wooden reel

D280×d100×H300
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

The RG59 series 75 Ohm standard shielded coaxial cable is a type of cable commonly used for video and television signal transmission. It is designed to carry baseband video signals with a characteristic impedance of 75 Ohms. RG59 coaxial cable has a characteristic impedance of 75 Ohms. This impedance value is important for maintaining signal integrity and minimizing reflections in video signal transmission. RG59 coaxial cable remains a widely used and cost-effective choice for video signal transmission in certain applications. However, it's important to note that for high-definition (HD) video, longer cable runs, or applications requiring higher bandwidth, upgrading to RG6 or other coaxial cable standards may be more appropriate to ensure optimal signal quality and performance.
