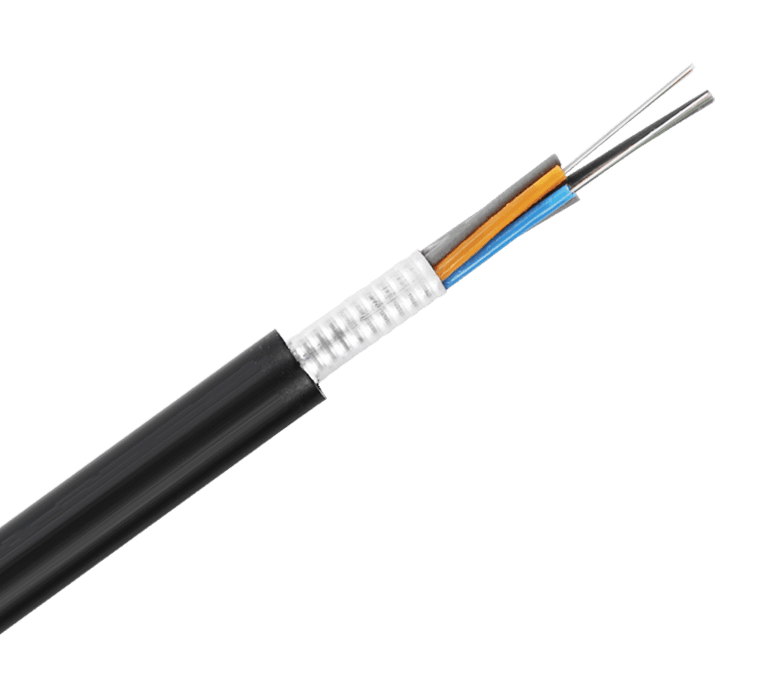

GYTA Layer Stranded Type Outdoor Optical Fiber Cable

Outdoor cable applied to different environment condition, with the laying methods of dust, aerial, direct buried and underwater. Adopter to corn network, metropolitan area network, access network, ect.
Message form contact us
PREV: GYTA53 Layer Stranded Type Outdoor Optical Fiber Cable NEXT: No next article

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

 Items

 Specifications

 Fiber Count

4-288

Fiber Type

G.652D

Colored Coating Fiber

 Dimension

250µm±15µm

 Color

Blue、Orange、Green、Brown、Gray、White 、

Red、Black、Yellow、Purple、Pink、Aqua

Loose Tube

Dimension

1.8±0.1mm/2.0±0.1mm

 Material

PBT

 Color

Blue、Orange、Green、Brown、Gray、White 、

Red、Black、Yellow、Purple、Pink、Aqua

Filler(If needed)

Dimension

1.8±0.1mm/2.0±0.1mm

Material

PP

Color

Natural

Central Strength Member

Material

 Steel Wire+PE(If needed)



Outer Sheath



Dimension

(9.2±0.3)mm(4F-24F)

(9.8±0.3)mm(36F-60F)

(10.3±0.3)mm(72F)

(11.9±0.3)mm(96F)

(14.3±0.5)mm(144F)

(14.4±0.5)mm(216F)

(16.4±0.5)mm(288F)

Material

PE

Color

Black

Fiber Attenuation coefficient in Cable

dB/km(1310nm)

≤0.36dB/km

dB/km(1550nm)

≤0.22dB/km
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

Built with the latest technology and superior quality materials, the GYTA Layer Stranded Type Outdoor Optical Fiber Cable is designed to meet the demands of today's modern communication networks. It features a layer-stranded construction, which ensures high tensile strength and crush resistance, making it ideal for outdoor installations.

The cable is made up of several fibers that are enclosed in a loose tube, providing maximum protection against moisture and mechanical damage. The loose tube design also allows for easy handling and installation, making it a practical choice for both DIY and professional applications.

The GYTA Layer Stranded Type Outdoor Optical Fiber Cable is capable of transmitting data at incredibly high speeds, with a maximum bandwidth of up to 10 Gbps. This makes it an excellent choice for high-bandwidth applications such as video streaming, online gaming, and cloud computing.

One of the key features of the GYTA Layer Stranded Type Outdoor Optical Fiber Cable is its ability to withstand harsh environmental conditions. The cable is designed to operate in temperatures ranging from -40°C to +70°C, making it suitable for use in extreme climates.

Additionally, the GYTA Layer Stranded Type Outdoor Optical Fiber Cable is resistant to UV radiation, making it an ideal choice for outdoor installations where exposure to sunlight is a concern. It is also resistant to water and chemicals, ensuring reliable and long-lasting performance in a variety of environments.

Installation of the GYTA Layer Stranded Type Outdoor Optical Fiber Cable is a breeze. The cable is lightweight and flexible, allowing for easy maneuvering and routing. It is compatible with a wide range of connectors and termination methods, making it a versatile solution for various applications.
