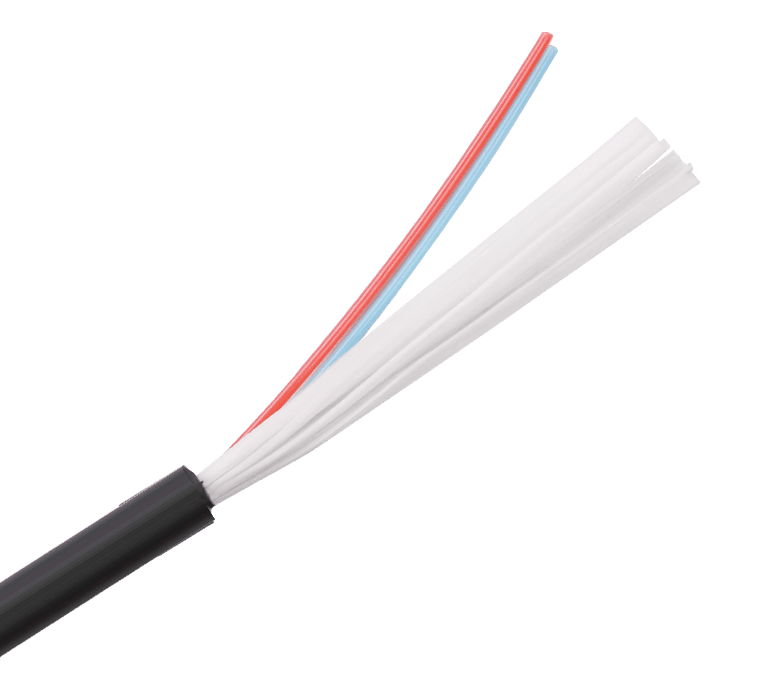

GJYFJH Indoor Optical Fiber Cable

Construction

Description

Tight cover of optical fiber, reinforced parts and outer sheath

Optical fiber

 monomode optical fiber；single mode optical fiber；single mode fiber ：G.657A2ect

.， Multimode (optical) fibre ：OM2

Tight cover layer

LSZH、TPEEOr other materials

Strength-Member

芳纶纱Or other materials

Jacket

Material: Low-smoke, halogen-free and flame-retardant polyolefin（LSZH) Or other materials

Character

Application

Mainly used for the base station to pull the far away

Characteristic

Suitable for tower lead and down laying

Anti-UV, heat cracking, excellent environmental performance;

High tensile resistance, pressure resistance, excellent mechanical performance

Operating-Temperature

LSZH：-40℃～+75℃

Parameters

Fiber Count

Diameter（mm）

Weight（kg）

Tensile Strength

（N）

Crush Resistance Strength（N/10cm）

Bending Radius

（mm）

Long Term

Short Term

Long Term

Short Term

Static

Dynamic

1-4

4.8

24.5

200

400

500

1000

10D

20D
