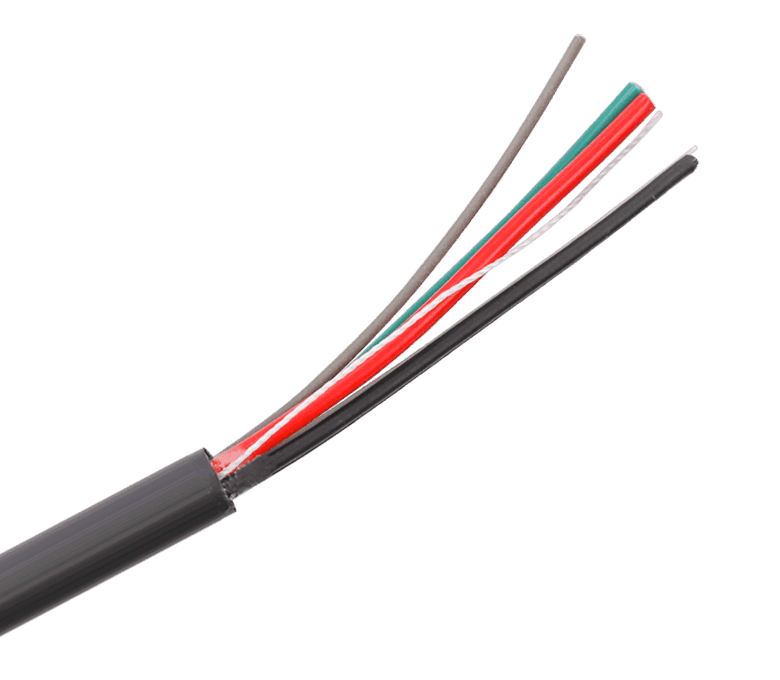

GDHH Indoor Optical Fiber Cable

Construction

Description

Butterfly fiber cable, power cable, fill, tear rope, wrap belt, outer sheath

Optical fiber

Single mode optical fiber：G.657A2 etc.

Power cable

0.75/1.0/1.5/2.5 Square or other line gauge

Filling

Net rope

Jacket

Material: Low-smoke, halogen-free and flame-retardant polyolefin（LSZH）、Polyvinyl chloride（PVC）Or other materials

Character

Application

Mainly used for the communication of small base stations, video screen monitoring system, etc

Characteristic

Can be directly used with a quick connection, convenient construction;

It also provides a large-capacity optical signal and provides an independent power supply;

Mechanical performance is very superior

Operating-Temperature

LSZH：-40℃～+70℃

Parameters

Fiber Count

Diameter（mm）

Weight（kg）

Tensile Strength

（N）

Crush Resistance Strength（N/10cm）

Bending Radius

（mm）

Long Term

Short Term

Long Term

Short Term

Static

Dynamic

2

9.3

105

250

500

300

1000

15D

30D
