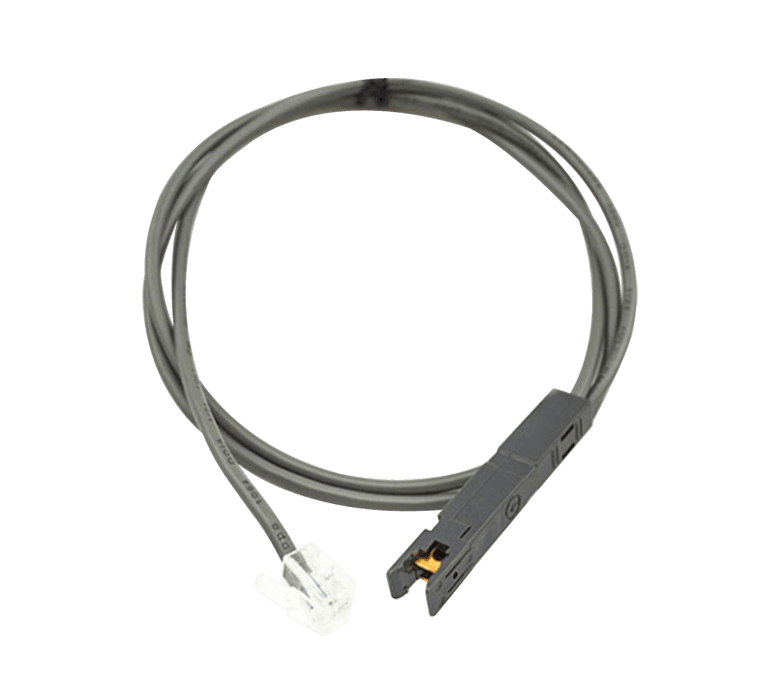

110 Duckbill Voice Jumper Copper Cabling Series Power Distribution Accessory

Multi-strand soft copper (oxygen-free copper, purity 99.99%) stranded wire, 100% of the mechanical and physical parameters pass the channel test



The jumper has an injection-molded tail sleeve to prevent loosening and ensure the reliability and link stability of the cable and the plug. The 50μ gold-plated RJ45 and 110 duckbill plugs are used to ensure reliable contact between the gold-plated reed and the conductor; the number of plug-in cycles is ≥200;



Jumper structure: sheath material: PVC/LSZH, plug sheath: PVC, plastic shell: transparent polycarbonate, reed material: phosphor bronze, surface 50μ gold-plated;



Support voice system transmission;



Support transmission bandwidth 16MHz, support transmission rate 10Mbps;



Applicable environment: Operating temperature: -20°C～70°C. Storage temperature: -20°C～70°C. Relative humidity: 10%～90%;
