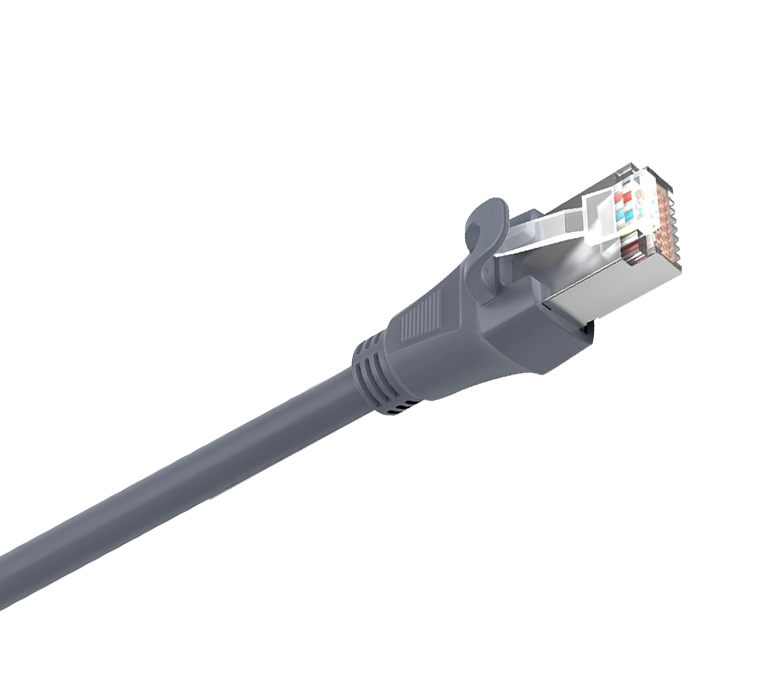

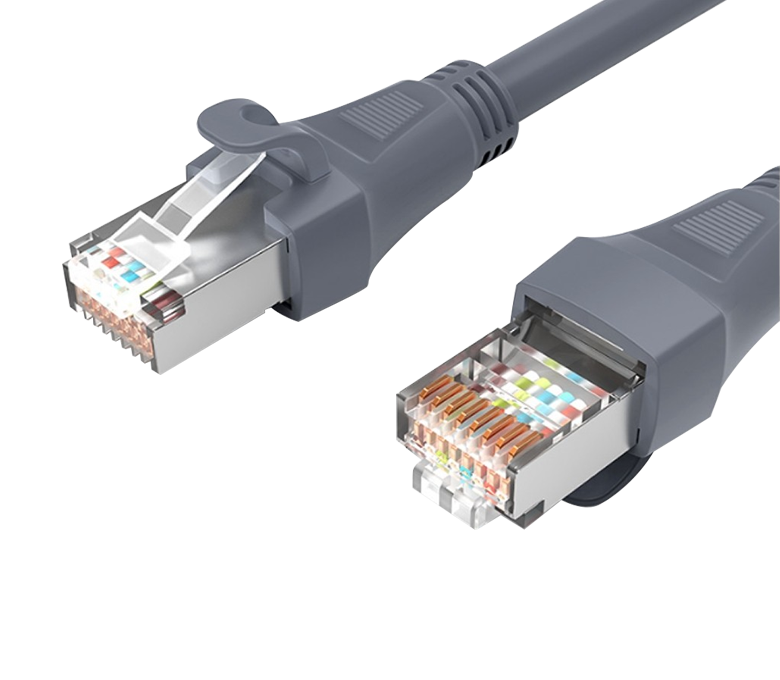

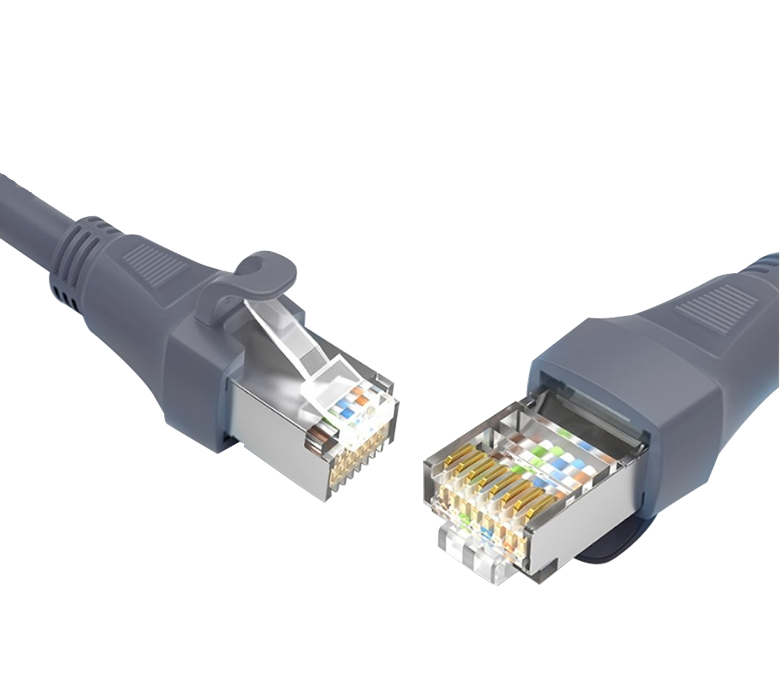

CAT6A-PATCH-CORD Category Jumper Connection Cable

  • Mukti-stand soft copper(oxugen-free copper,qurity 99.99%)stranded wire.
  •  Press the channel test(FLUKE).
  •  The 50µ gold-plated RJ45 plug,insert&draw frequency is ≥1000 times.
  •  Support bandwidth 500MHz,velocity 10Gbps.
  • Applicable environment:use&storage temperature:-20℃~70℃relative, humidity:10% to 90%.

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Physical performance

Jacket Material

PVC/LSZH

Insulation Materials

HDPE

Conduct Material

Multi stranded oxygen fre copper

Plug Material

PC

Plug Jacket

PVC

Reed Material

50µ gold-plated phospher bronze

Insert and Frequercy

≥1000 times

Bending Radius

≥2D Diameter

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

lEAVE A MESSAGE

News

Product knowledge extension

CAT6A Patch Cords or Category Jumper Connection Cables are a type of Ethernet cable that is used to connect networking devices, such as computers, routers, switches, and servers. These cables are designed to meet the latest industry standards and provide high-speed data transfer rates with low interference and crosstalk.CAT6A patch cords are typically made with four twisted pairs of copper wires and are capable of transmitting data at speeds of up to 10 Gigabits per second (Gbps). They are backward compatible with CAT5 and CAT5e cables, which means they can be used in networks that have these older types of cabling. The main difference between CAT6 and CAT6A is that the latter has a higher bandwidth, which means it can handle more data at once. CAT6A patch cords are also designed to reduce interference and crosstalk, which can help improve network performance and reliability.Jumper connection cables are a type of patch cord that is used to connect two network devices directly. They are often used in data centers and server rooms where space is limited and there is a need for quick and easy connections between devices. Jumper cables are usually shorter in length than standard patch cords, which makes them easier to manage and less prone to tangling.
