CAT6-8 Category Jumper Connection Cable Wholesale

Home / Product / Connection Cable / Category Jumper Connection Cable / CAT6-8 Category Jumper Connection Cable

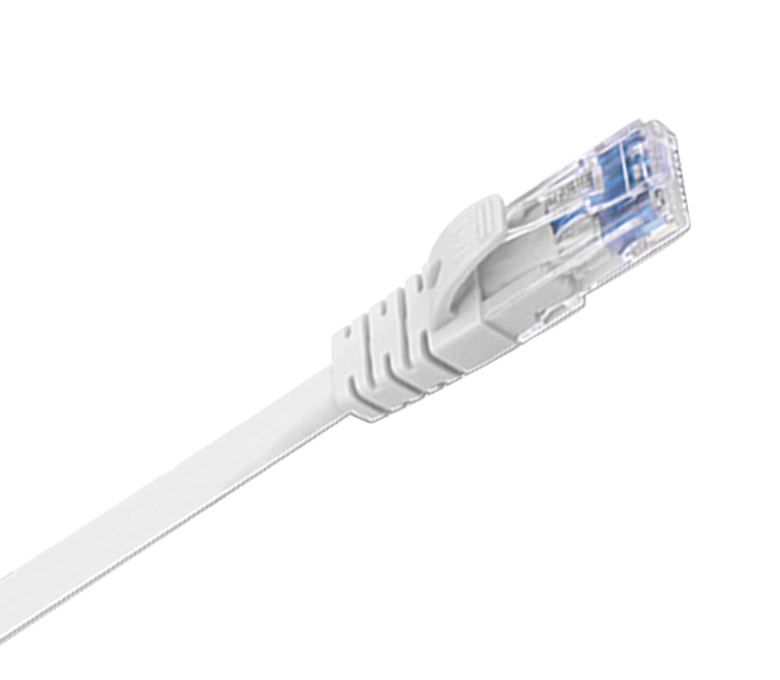

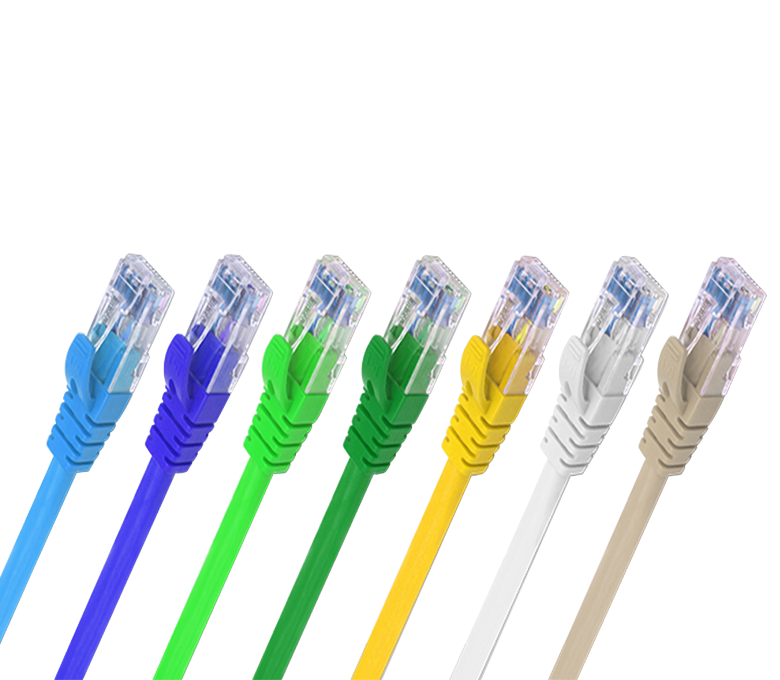

CAT6-8 Category Jumper Connection Cable

  • Mukti-stand soft copper(oxugen-free copper,qurity
99.99%)stranded wire.
  • Press the channel test(FLUKE).
  • The 50µ gold-plated RJ45 plug,insert&draw frequency is ≥1000 times.
  • Support bandwidth 250MHz,velocity 1000Mbps.
  • Applicable environment:use&storage temperature:-20℃~70℃,relative humidity:10% to 90%.

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Physical performance

Jacket Material

PVC/LSZH

Insulation Materials

HDPE

Conduct Material

Multi stranded oxygen fre copper

Plug Material

PC

Plug Jacket

PVC

Reed Material

50µ gold-plated phospher bronze

Insert and Frequercy

≥1000 times

Bending Radius

≥2D Diameter

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

lEAVE A MESSAGE

News

Product knowledge extension

CAT6-8 Category Jumper Connection Cables are high-performance networking cables designed for use in professional data centers, server rooms, and other demanding network environments. CAT6-8 Category Jumper Connection Cables are part of the CAT6-8 cable family, which is an evolution of the popular CAT5e and CAT6 cables. These cables offer increased performance and improved signal quality over their predecessors, making them ideal for high-bandwidth applications such as streaming video, VoIP, and large file transfers.
The CAT6-8 Category Jumper Connection Cable is made up of four twisted pairs of copper wires, each with its own shield. These shields help to reduce interference from other sources, such as electrical equipment or other cables, which can degrade the quality of the signal and cause data loss.The cable is then wrapped in an overall shield, which provides additional protection against electromagnetic interference (EMI) and radio frequency interference (RFI). This shield is typically made of aluminum or copper foil, or a combination of both, and helps to ensure that the signal remains clean and strong even in noisy environments.The cable is terminated with RJ45 connectors on each end, which are designed to be compatible with most network devices. These connectors are also designed to provide a secure and reliable connection, with features such as gold-plated contacts that help to prevent corrosion and ensure long-term performance.
