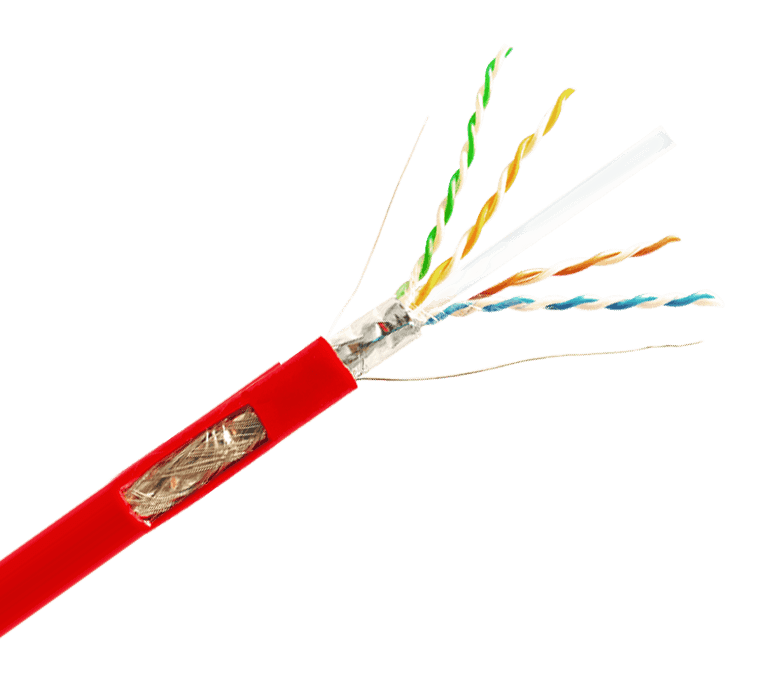

CAT6A S/FTP Lan Cable Category Cable

Lan Cable is a kind of media for transmitting digital information. This kind of cable is used in building integrated cabling system, residential integrated cabling system and enterprise information network cabling system. It is suitable for the front end of broadband and high-speed networks.

Message form contact us

PREV: No previous article NEXT: No next article

Details & specifications

Construction
Technical Data Sheet
Documents to download

Item		Unit	Spec. Value
Conductor	Wire No.	---	4P
	Material	---	Solid Bare Copper
	Spec	AWG	23AWG
	Construction	No./mm	0.57±0.02
Insulation	Material	---	Skin-foam-skin
	Diameter	mm	1.35±0.05
	Color	---	1.Blue&White 2.Orange&White 3.Green&White 4.Brown&White
Foil Shield	Spec	mm	AL-Mylar 100％Coverage
Drain Wire	Material	---	Tinned copper
Drain Wire	Spec	mm	1/0.4±0.05
Braid Shield	Material	---	Al-Mg ＞40％Coverage
Jacket	Material	---	PVC
	Color	---	Assorted upon request
	Thickness	mm	0.55±0.1
	Diameter	mm	7.8±0.5

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

Color Printing Packaging Line, Imported New High-end Printing Equipment

lEAVE A MESSAGE

News

Indoor fiber optic cable: low loss characteristics help the leap forward in modern communications

With the rapid development of modern communication technology, the efficiency and stability of data transmissi...
2024-04-24
Optoelectronic composite cable: Pioneer in the integration of communications and power

Today, with the rapid development of big data, cloud computing and Internet of Things technologies, communicat...
2024-04-18
Compatibility of video cable power distribution accessories: key to ensuring stable signal transmission

With the continuous development of audio and video technology, the selection of video cable distribution acces...
2024-04-11
Wall-mounted fiber optic terminal box power distribution accessories: dual guarantee of ease of use and stability

In modern communication networks, wall-mounted optical fiber terminal box power distribution accessories provi...
2024-04-04

Product knowledge extension

At its core, the CAT6A S/FTP Lan Cable Category Cable is a top-of-the-line Ethernet cable that delivers fast data transfer speeds of up to 10Gbps. It's built with high-quality materials and advanced shielding technology, making it a reliable choice for all your networking needs.

One of the key features of this cable is its S/FTP (Shielded/Foil Twisted Pair) design, which provides maximum protection against electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures that your data transmission is uninterrupted, even in noisy environments, and reduces the risk of data corruption or loss.

Another standout feature of the CAT6A S/FTP Lan Cable Category Cable is its backward compatibility with lower-grade Ethernet standards such as CAT5 and CAT5e. This makes it a versatile solution for upgrading your existing network infrastructure without having to replace all your cables.

But the benefits of this cable don't stop there. It's also constructed with a durable PVC jacket that's resistant to bending, abrasion, and moisture. This makes it an ideal choice for use in harsh environments or high-traffic areas where cables are prone to wear and tear.

In terms of length, the CAT6A S/FTP Lan Cable Category Cable is available in a range of sizes, from 1 foot to 100 feet, so you can choose the perfect length for your networking setup. The cable is also available in a variety of colors, including blue, black, and gray, to match your aesthetic preferences or color code your network cables for easy identification.

Installing the CAT6A S/FTP Lan Cable Category Cable is a breeze, thanks to its easy-to-use RJ45 connectors that plug directly into your Ethernet ports. The cable is also compatible with a wide range of devices, including routers, switches, hubs, and more.

Conductor Elongation	≥10％
Insulation Tensile Strength	≥10Mpa
Insulation Elongation	≥200％
Jacket Tensile Strength	≥13.8Mpa
Jacket Elongation	≥100％

Impedance	100±15Ω（1-100MHz）
	100±22Ω（100-250MHz）
	100±25Ω（250-500MHz）
Conductor Resistance @20°C	Max.9.38Ω/100m
DC Resistance Unbalance	Max.5％
Insulation Resistance	Min. 5000 MΩ*Km
Delay Skew	Max.45ns/100m

Frequency（MHz）	ATT (≤dB)	NEXT (≥dB)	PSNEXT (≥dB)	ELFEXT (≥dB)	PS ELFEXT (≥dB)	RL (≥dB)	Spread out 100m cable and test it
1.00	2.1	74.3	72.3	67.8	64.8	20.0
4.00	3.8	65.3	63.3	55.8	52.8	23.0
8.00	5.3	60.8	58.8	49.7	46.7	24.5
10.00	5.9	59.3	57.3	47.8	44.8	25.0
16.00	7.5	56.2	54.2	43.7	40.7	25.0
20.00	8.4	54.8	52.8	41.8	38.8	25.0
25.00	9.4	53.3	51.3	39.8	36.8	24.3
31.25	10.5	51.9	49.9	37.9	34.9	23.6
62.50	15.0	47.4	45.4	31.9	28.9	21.5
100.00	19.1	44.3	42.3	27.8	24.8	20.1
200.00	27.6	39.8	37.8	21.8	18.8	18.0
250.00	31.1	38.3	36.3	19.8	16.8	17.3
300.00	34.3	37.1	35.1	18.3	15.3	16.8
400.00	40.1	35.3	33.3	15.8	12.8	15.9
500.00	45.3	33.8	31.8	13.8	10.8	15.2
