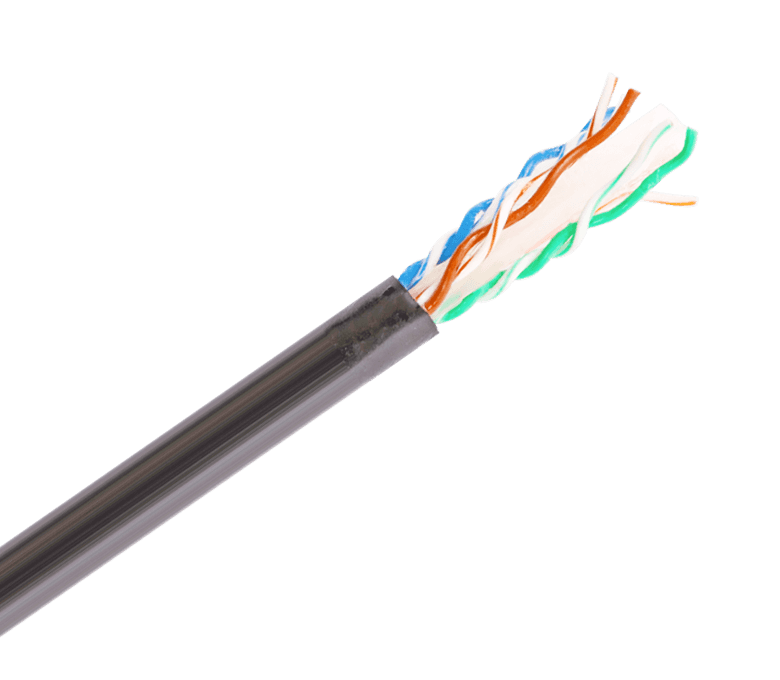

CAT6 U/UTP Lan Cable Category Cable

Lan Cable is a kind of media for transmitting digital information. This kind of cable is used in building integrated cabling system, residential integrated cabling system and enterprise information network cabling system. It is suitable for the front end of broadband and high-speed networks

Message form contact us

PREV: No previous article NEXT: CAT6 F/UTP Lan Cable Category Cable

Details & specifications

Construction
Technical Data Sheet
Documents to download

Item		Unit	Spec. Value
Conductor	Wire No.	---	4P
	Material	---	Solid Bare Copper
	Construction	No./mm	0.57±0.02
Insulation	Material	---	PE
	Diameter	mm	1.02±0.05
	Color	---	1.Blue&White Blue 2.Orange&White Orange 3.Green&White Green 4.Brown&White Brown
Seperator	Material	---	PE
Rip Cord	Material	---	Nylon
Jacket	Material	---	PVC
	Color	---	Assorted upon request
	Thickness	mm	0.55±0.1
	Diameter	mm	6.2±0.5

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

Color Printing Packaging Line, Imported New High-end Printing Equipment

lEAVE A MESSAGE

News

Indoor fiber optic cable: low loss characteristics help the leap forward in modern communications

With the rapid development of modern communication technology, the efficiency and stability of data transmissi...
2024-04-24
Optoelectronic composite cable: Pioneer in the integration of communications and power

Today, with the rapid development of big data, cloud computing and Internet of Things technologies, communicat...
2024-04-18
Compatibility of video cable power distribution accessories: key to ensuring stable signal transmission

With the continuous development of audio and video technology, the selection of video cable distribution acces...
2024-04-11
Wall-mounted fiber optic terminal box power distribution accessories: dual guarantee of ease of use and stability

In modern communication networks, wall-mounted optical fiber terminal box power distribution accessories provi...
2024-04-04

Product knowledge extension

With a category 6 rating, this cable is capable of transmitting data at speeds of up to 10 Gigabits per second, ensuring that your network operates at peak efficiency. Whether you're streaming high-definition video, transferring large files, or gaming online, you can be confident that the CAT6 U/UTP LAN Cable Category Cable will deliver the speed and performance you need.

One of the key features of this cable is its U/UTP (unshielded twisted pair) construction. This design ensures that the cable is highly resistant to interference from other electronic devices, making it ideal for use in busy environments where there are many other devices operating nearby. This makes it the perfect choice for use in offices, schools, and other environments where a reliable and high-performance network is essential.

The cable is constructed from high-quality materials, including copper conductors and PVC jacketing, ensuring that it is both durable and long-lasting. The copper conductors are designed to provide optimal signal transmission, while the PVC jacketing protects the cable from damage and wear and tear.

Installation of the CAT6 U/UTP LAN Cable Category Cable is a breeze, thanks to its flexible design and easy-to-use connectors. The cable is available in a range of lengths, from 1 meter to 100 meters, so you can choose the length that best suits your needs.

Whether you're looking to upgrade your existing network or create a new one from scratch, the CAT6 U/UTP LAN Cable Category Cable is the perfect choice. With its superior performance, reliability, and durability, you can be confident that it will provide the speed and efficiency you need, day after day.

Conductor Elongation	≥10％
Insulation Tensile Strength	≥16Mpa
Insulation Elongation	≥300％
Jacket Tensile Strength	≥13.8Mpa
Jacket Elongation	≥100％

Impedance	100±15Ω（1-100MHz）
Impedance	100±22Ω（100-250MHz）
Conductor Resistance @20°C	Max.9.38Ω/100m
DC Resistance Unbalance	Max.5％
Insulation Resistance	Min. 5000 MΩ*Km
Delay Skew	Max.45ns/100m

Frequency（MHz）	ATT (≤dB)	NEXT (≥dB)	PSNEXT (≥dB)	ELFEXT (≥dB)	PS ELFEXT (≥dB)	RL (≥dB)	Spread out 100m cable and test it
1.00	2.0	74.3	72.3	67.8	64.8	20.0
4.00	3.8	65.3	63.3	55.8	52.8	23.0
8.00	5.3	60.8	58.8	49.7	46.7	24.5
10.00	6.0	59.3	57.3	47.8	44.8	25.0
16.00	7.6	56.2	54.2	43.7	40.7	25.0
20.00	8.5	54.8	52.8	41.8	38.8	25.0
25.00	9.5	53.3	51.3	39.8	36.8	24.3
31.25	10.7	51.9	49.9	37.9	34.9	23.6
62.50	15.4	47.4	45.4	31.9	28.9	21.5
100.00	19.8	44.3	42.3	27.8	24.8	20.1
200.00	29.0	39.8	37.8	21.8	18.8	18.0
250.00	32.8	38.3	36.3	19.8	16.8	17.3
