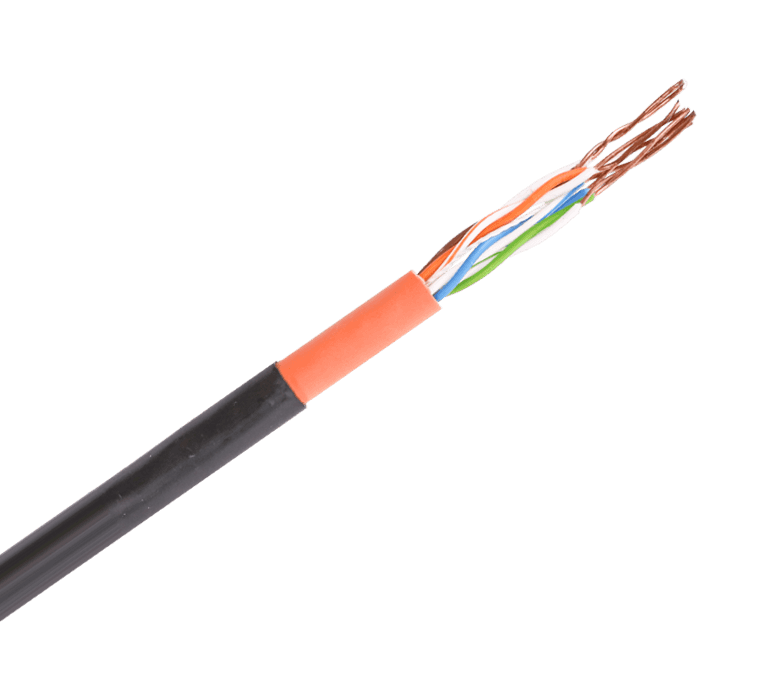

CAT5e U/UTP Lan Cable Category Cable

Lan Cable is a kind of media for transmitting digital information. This kind of cable is used in building integrated cabling system, residential integrated cabling system and enterprise information network cabling system. It is suitable for the front end of broadband and high-speed networks

Message form contact us

PREV: CAT6 S/FTP Lan Cable Category Cable NEXT: CAT5e U/UTP Lan Cable Category Cable

Details & specifications

Construction
Technical Data Sheet
Documents to download

Item		Unit	Spec. Value
Conductor	Wire No.	---	4P
	Material	---	Solid Bare Copper
	Construction	No./mm	0.5±0.01
Insulation	Material	---	PE
	Diameter	mm	0.89±0.05
	Color	---	1.Blue&White Blue 2.Orange&White Orange 3.Green&White Green 4.Brown&White Brown
Rip cord	---	/	Yes
Jacket	Material	---	PVC
	Color	---	Assorted upon request
	Thickness	mm	0.5±0.1
	Diameter	mm	5.0±0.3

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

Color Printing Packaging Line, Imported New High-end Printing Equipment

lEAVE A MESSAGE

News

CAT5e S/FTP Lan cable: the stable and high-speed choice for LAN construction

In the digital age, LAN has become an indispensable part of our daily life and work. In order to meet the need...
2024-05-09
Tightly buffered fiber optic cables: the perfect choice for data transmission

With the advent of the big data era, the importance of data transmission has become increasingly prominent. In...
2024-05-02
Overseas layout of equipment and cable of Wanma shares is upgrading, and the signing ceremony of the new plant of Vietnam Company was successfully held.

With the change in the international situation, and the continuous development of overseas business, domestic ...
2024-04-26
Indoor fiber optic cable: low loss characteristics help the leap forward in modern communications

With the rapid development of modern communication technology, the efficiency and stability of data transmissi...
2024-04-24

Product knowledge extension

With its Category 5e rating, this cable is capable of supporting high-speed data transfer rates of up to 1 Gbps, making it ideal for use in demanding applications such as online gaming, video streaming, and large file transfers. Whether you're a gamer, a content creator, or a business owner, you can rely on this cable to provide you with fast, reliable connectivity that will help you get your work done efficiently.

One of the key features of this cable is its U/UTP design, which stands for Unshielded/Unshielded Twisted Pair. This means that the cable is constructed using four pairs of twisted copper wires that are wrapped in a protective outer jacket, but do not have any additional shielding. This makes the cable lightweight and flexible, making it easy to route and install in tight spaces.

Another advantage of the CAT5e U/UTP Lan Cable Category Cable is its high-quality construction. The cable is made using premium-quality materials that ensure maximum durability and longevity. The copper conductors are made from high-purity, oxygen-free copper that provides excellent conductivity and resistance to corrosion. The outer jacket is made from PVC, which is resistant to abrasion, chemicals, and moisture, ensuring that the cable remains in top condition even in harsh environments.

When it comes to installation, the CAT5e U/UTP Lan Cable Category Cable is incredibly easy to work with. The cable is supplied in standard lengths, and is terminated with standard RJ-45 connectors that are compatible with most network devices. The connectors are made from high-quality materials that provide a secure and reliable connection, and are designed to withstand repeated use without degrading in performance.

Finally, this cable is also incredibly versatile. Whether you need to connect your desktop computer to your router, link multiple devices in a home network, or set up a small office network, the CAT5e U/UTP Lan Cable Category Cable is the perfect choice. It is compatible with a wide range of network devices, including routers, switches, hubs, and modems, and can be used for both indoor and outdoor applications.

Conductor Elongation	≥10％
Insulation Tensile Strength	≥16.5Mpa
Insulation Elongation	≥300％
Jacket Tensile Strength	≥13.8Mpa
Jacket Elongation	≥100％
Impedance	100±15Ω（1.0-100Mhz）
Conductor Resistance @20°C	Max.9.38Ω/100m
DC Resistance Unbalance	Max.5％
Insulation Resistance	Min. 5000 MΩ*Km
Delay Skew	Max.45ns/100m
Frequency（MHz）	ATT (≤dB)	NEXT (≥dB)	PSNEXT (≥dB)	ELFEXT (≥dB)	PS ELFEXT (≥dB)	RL (≥dB)	Spread out 100m cable and test it
1.00	2.0	65.3	62.3	63.8	60.8	20.0
4.00	4.1	56.3	53.3	51.8	48.8	23.0
8.00	5.8	51.8	48.8	45.7	42.7	24.5
10.00	6.5	50.3	47.3	43.8	40.8	25.0
16.00	8.2	47.2	44.2	39.7	36.7	25.0
20.00	9.3	45.8	42.8	37.8	34.8	25.0
25.00	10.4	44.3	41.3	35.8	32.8	24.3
31.25	11.7	42.9	39.9	33.9	30.9	23.6
62.50	17.0	38.4	35.4	27.9	24.9	21.5
100.00	22.0	35.3	32.3	23.8	20.8	20.1
