CAT5e S/FTP Lan Cable Category Cable Wholesale

Home / Product / Lan Cable/Category Cable / CAT5e Lan Cable/Category Cable / CAT5e S/FTP Lan Cable Category Cable

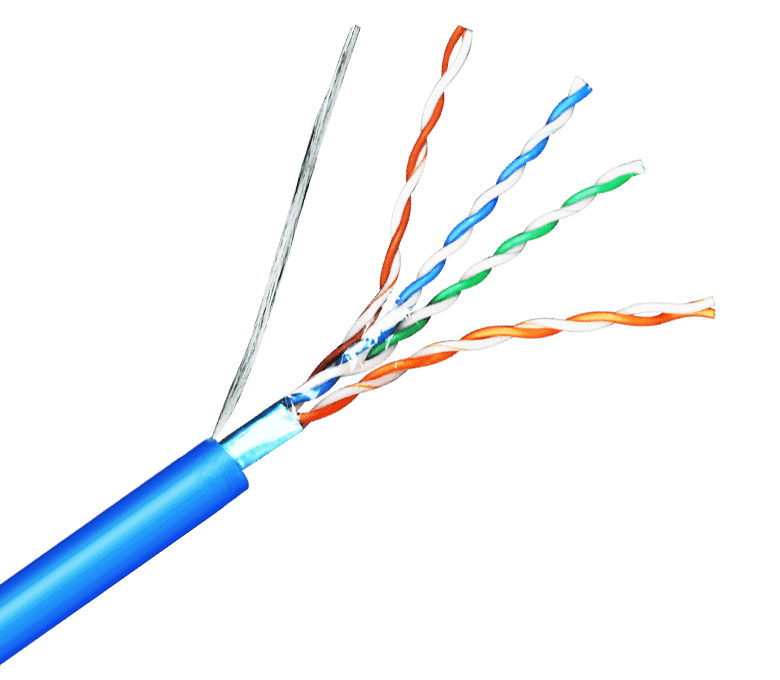

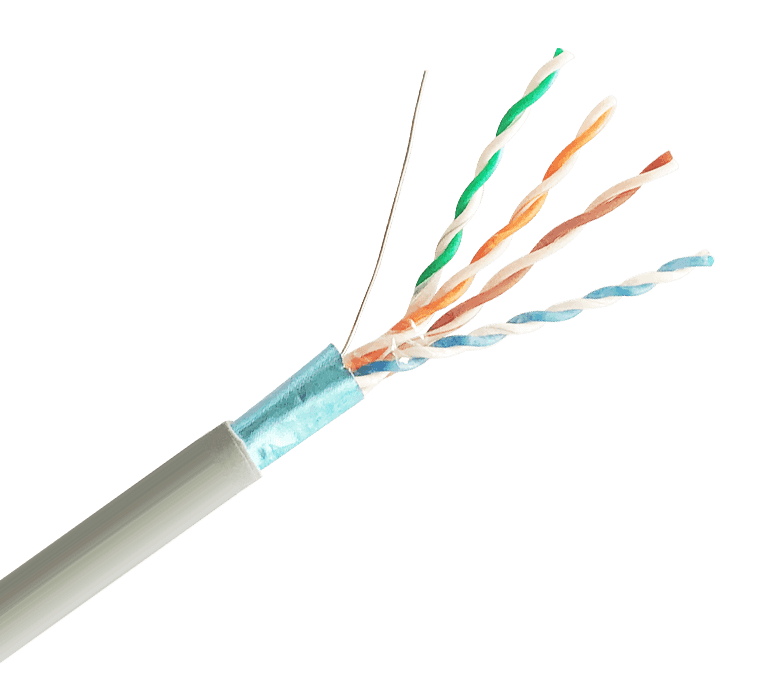

CAT5e S/FTP Lan Cable Category Cable

Lan Cable is a kind of media for transmitting digital information. This kind of cable is used in building integrated cabling system, residential integrated cabling system and enterprise information network cabling system. It is suitable for the front end of broadband and high-speed networks.

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Item

Unit

Spec. Value

Conductor



Wire No.

---

4P

Material

---

Solid Bare Copper

Construction

No./mm

0.51±0.02

Insulation



Material

---

PE

Diameter

mm

1.02±0.05

Color

---

1.Blue&White Blue  2.Orange&White Orange

3.Green&White Green 4.Brown&White Brown

Tape Wrap

Material

/

PET 100% Coverage

Foil Shield

Spec

mm

AL-Mylar 100%Coverage

Drain Wire

Material

---

Tinned copper

Spec

---

0.4±0.05mm

Braid Shield

Material

---

Al-Mg >40%Coverage

Rip cord

---

/

Yes

Jacket

Material

---

PVC

Color

---

Assorted upon request

Thickness

mm

0.55±0.1

Diameter

mm

6.6±0.3

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

lEAVE A MESSAGE

News

Product knowledge extension

The CAT5e S/FTP Lan Cable Category Cable is engineered to meet and exceed industry standards for Category 5e cabling. With its durable construction and advanced features, this cable is perfect for use in demanding environments such as data centers, server rooms, and other high-traffic areas.

At the heart of our cable is its unique S/FTP (Shielded Foiled Twisted Pair) design. This design provides superior protection against interference and crosstalk, ensuring that your data transmissions remain clear and consistent. The cable is shielded with both an overall foil shield and individual foil shielding around each twisted pair of wires, ensuring maximum protection against external interference.

The CAT5e S/FTP Lan Cable Category Cable is also highly flexible and easy to install. Its thin design allows for easy routing through tight spaces, and its flexible construction makes it easy to bend and manipulate as needed. Additionally, its slim profile makes it ideal for use in applications where space is at a premium.

One of the key benefits of our cable is its exceptional performance. The CAT5e S/FTP Lan Cable Category Cable is capable of supporting data transfer rates of up to 1 Gbps, making it ideal for high-speed data transmission applications such as video streaming, VoIP, and online gaming. The cable also supports Power over Ethernet (PoE) applications, making it an excellent choice for use with devices such as IP cameras, wireless access points, and VoIP phones.

The CAT5e S/FTP Lan Cable Category Cable is available in a variety of lengths to suit your needs, from short patch cables to long runs for backbone installations. Each cable is made with high-quality materials, including oxygen-free copper conductors and a durable, flame-retardant jacket that meets UL standards.
