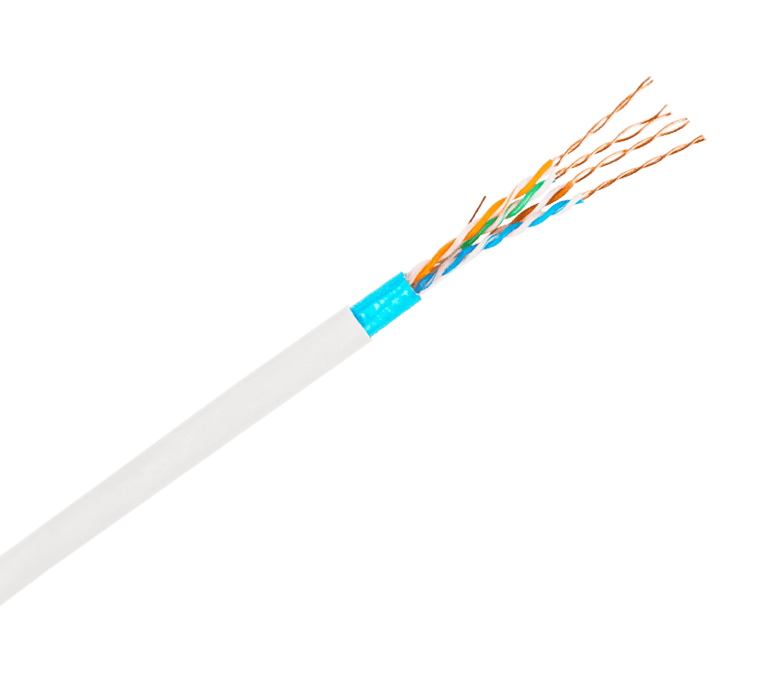

CAT5E S/FTP Lan Cable Category Cable

Lan Cable is a kind of media for transmitting digital information. This kind of cable is used in building integrated cabling system, residential integrated cabling system and enterprise information network cabling system. It is suitable for the front end of broadband and high-speed networks.
Message form contact us
PREV: CAT5e U/UTP Lan Cable Category Cable NEXT: CAT5E F/UTP Lan Cable Category Cable

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Item

Unit

Spec. Value

Conductor



Wire No.

---

4P

Material

---

Solid Bare Copper

Construction

No./mm

0.51±0.02

Insulation



Material

---

PE

Diameter

mm

1.02±0.05

Color

---

1.Blue&White Blue  2.Orange&White Orange

3.Green&White Green 4.Brown&White Brown

Tape Wrap

Material

/

PET 100％ Coverage

Foil Shield

Spec

mm

AL-Mylar 100％Coverage

Drain Wire

Material

---

Tinned copper

Spec

---

0.4±0.05mm

Braid Shield

Material

---

Al-Mg ＞40％Coverage

Rip cord

---

/

Yes

Jacket

Material

---

PVC

Color

---

Assorted upon request

Thickness

mm

0.55±0.1

Diameter

mm

6.6±0.3
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

This premium quality cable is designed to deliver unmatched performance and reliability for professional-grade applications.

The CAT5E S/FTP Lan Cable Category Cable is manufactured using the latest technology and highest quality materials to ensure maximum data transfer speeds and minimal signal loss. With its Category 5 Enhanced (CAT5E) rating, this cable is capable of transmitting data at speeds of up to 1Gbps, making it ideal for high-bandwidth applications such as video conferencing, online gaming, and large file transfers.

This cable is designed with a shielded twisted pair (STP) construction, which provides superior protection against electromagnetic interference (EMI) and radio frequency interference (RFI). The foil shielded twisted pair (FTP) design also ensures better crosstalk and noise reduction, resulting in clearer and more reliable signal transmission.
The CAT5E S/FTP Lan Cable Category Cable comes in a 305-meter reel, allowing you to customize the cable length to your specific needs. The cable is also compatible with a wide range of network devices and protocols, including Ethernet, Fast Ethernet, and Gigabit Ethernet.

This cable is easy to install, thanks to its flexible and durable PVC jacket, which provides excellent protection against abrasions, cuts, and other external damage. The jacket is also flame retardant, ensuring maximum safety in the event of a fire.

In addition to its technical features, the CAT5E S/FTP Lan Cable Category Cable is also environmentally friendly. It is manufactured using lead-free materials and meets RoHS and REACH compliance standards, making it safe for both human health and the environment.

The CAT5E S/FTP Lan Cable Category Cable is the perfect choice for businesses, IT professionals, and home users who demand the highest level of performance and reliability from their network cables. Whether you need to connect multiple devices in a LAN network or transfer large files across the internet, this cable delivers unparalleled performance and stability.
