ASU Layer Stranded Type Outdoor Optical Fiber Cable Wholesale

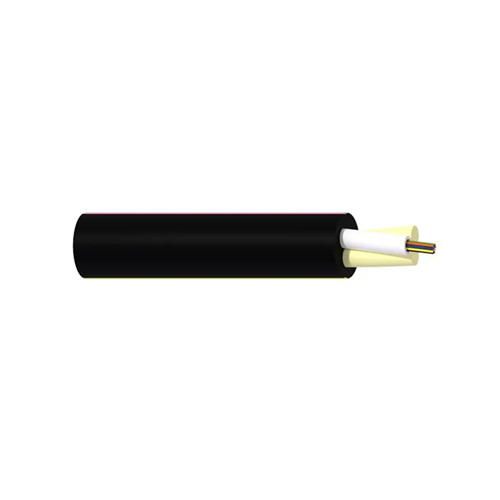

ASU Layer Stranded Type Outdoor Optical Fiber Cable

Outdoor cable applied to different environment condition, with the laying methods of dust, aerial, direct buried and underwater. Adopter to corn network, metropolitan area network, access network, ect.

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Cable Section Sketch Map

Strength member

FRP*2

2.3+/-0.1

Fiber Unit

Loose Tube

PBT

2.3+/-0.1



Fiber

2-12 Single Mode Fibers

G652D



Fiber Quantity

2-12 Pcs Fibers× 1 Loose Tube



Fiber Color

BlueOrangeGreenBrownGrayWhite

RedBlackYellowPurplePinkAqua



Loose Tube Color

Natural



Filling

Thixotropy Jelly

Water Blocking

Water Blocking Yarn

Rip-cord

1 Pc

Outside Sheath

PE

8.2+/-0.3

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

lEAVE A MESSAGE

News

Product knowledge extension

ASU (All-Dielectric Self-Supporting) Layer Stranded Type Outdoor Optical Fiber Cable is a specific type of fiber optic cable designed for outdoor installations. It is commonly used for long-distance communication networks, such as telecommunication and data transmission systems. ASU is a non-metallic, all-dielectric material that provides mechanical strength and protects the optical fibers from external factors such as moisture, UV radiation, and temperature variations. The ASU layer enhances the cable's resistance to environmental conditions and allows it to be self-supporting, eliminating the need for additional support structures like messenger wires or metal strength members. ASU Layer Stranded Type Outdoor Optical Fiber Cables are widely used in long-distance telecommunication networks, including fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), and fiber-to-the-curb (FTTC) applications. They are suitable for both urban and rural installations, providing reliable and high-speed data transmission over long distances.
