Category 5 Shielded/unshielded Data Jumper Copper Cabling Series Power Distribution Accessory

YD/T 926.3, ISO/IEC 11801: 2008, ANSI/EIA/TIA-568-C.2;
Message form contact us
PREV: 110 Duckbill Voice Jumper Copper Cabling Series Power Distribution Accessory NEXT: Six Types Of Shielded/unshielded Data Jumpers Copper Cabling Series Power Distribution Accessory

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download
Multi-strand soft copper (oxygen-free copper, purity 99.99%) stranded wire, 100% of the mechanical and physical parameters pass the channel test, and professional testing equipment (FLUKE) is used to perform 100% inspection on the finished jumper, eliminating the network caused by the jumper problem;

The jumper has an injection-molded tail sleeve to prevent loosening and ensure the reliability and link stability of the cable and plug. The 50μ gold-plated RJ45 plug is used to ensure reliable contact between the gold-plated reed and the conductor; the number of insertions and removals is ≥1000;

Color and length: In order to facilitate the management and maintenance of each functional area, and quickly distinguish different network segments such as internal and external networks and private networks, a variety of color jumpers can be provided; different lengths can be provided;

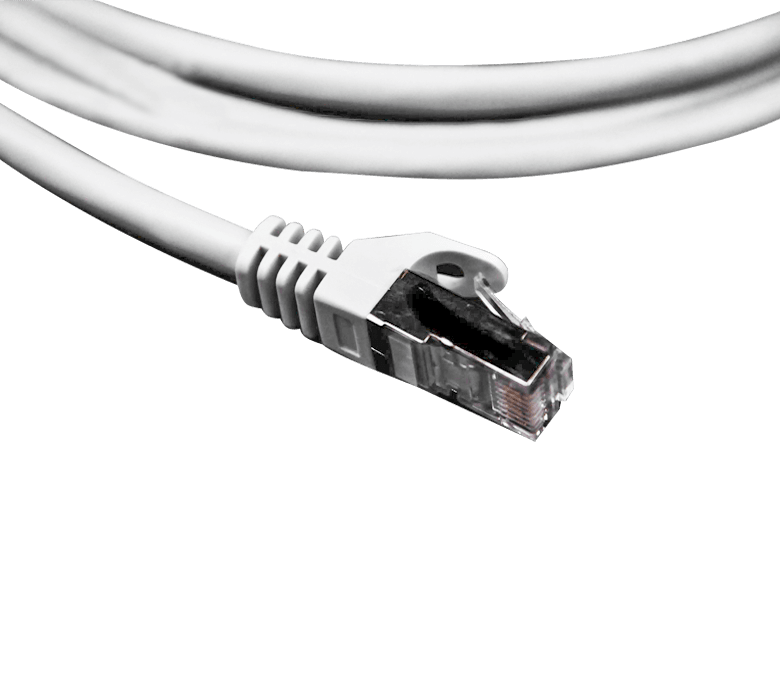

Jumper structure: Sheath material: PVC/LSZH, sheath outer diameter: 6.8±0.2mm, plug: RJ45, 8P8C, plug sheath: PVC, plastic shell: transparent polycarbonate, reed material: phosphor bronze, surface 50μ gold plating;

Support data, voice, surveillance, video and other system transmission;

Support transmission bandwidth 100MHz, support transmission rate 100Mbps;

Applicable environment: Operating temperature: -20°C～70°C. Storage temperature: -20°C～70°C. Relative humidity: 10%～90%;
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

Our Category 5 Shielded/Unshielded Data Jumper Copper Cabling Series Power Distribution Accessory is a high-quality networking cable designed for use in various industrial and commercial applications. It is made of high-quality copper and features a durable outer jacket that provides excellent protection against environmental factors such as moisture, heat, and chemicals.
This cable is available in both shielded and unshielded versions, allowing you to choose the best option for your specific needs. The shielded version is ideal for use in areas with high electromagnetic interference (EMI) while the unshielded version is suitable for areas with low EMI.
Our Category 5 Shielded/Unshielded Data Jumper Copper Cabling Series Power Distribution Accessory meets the industry standards for performance and safety. It complies with YD/T 926.3, ISO/IEC 11801: 2008, and ANSI/EIA/TIA-568-C.2 standards.
Product Specifications:
Product Type: Category 5 Shielded/Unshielded Data Jumper Copper Cabling Series Power Distribution Accessory
Conductor Material: Copper
Insulation Material: High-quality PVC
Jacket Material: PVC
Cable Type: Shielded/Unshielded
Available Lengths: 0.5m, 1m, 2m, 3m, 5m, 10m, and custom lengths
Standards Compliance: YD/T 926.3, ISO/IEC 11801: 2008, ANSI/EIA/TIA-568-C.2
Operating Temperature: -20°C to 60°C
Installation Temperature: 0°C to 50°C
Storage Temperature: -20°C to 75°C
Applications:
Used for networking purposes in various industrial and commercial applications
Ideal for use in areas with high EMI or low EMI depending on the version chosen
Suitable for use in a variety of settings including offices, data centers, schools, hospitals, and more
Packaging:
Our Category 5 Shielded/Unshielded Data Jumper Copper Cabling Series Power Distribution Accessory is packaged in easy-to-handle rolls or boxes, depending on the length of the cable. The packaging is designed to protect the cable during transport and storage, ensuring it arrives in optimal condition.
